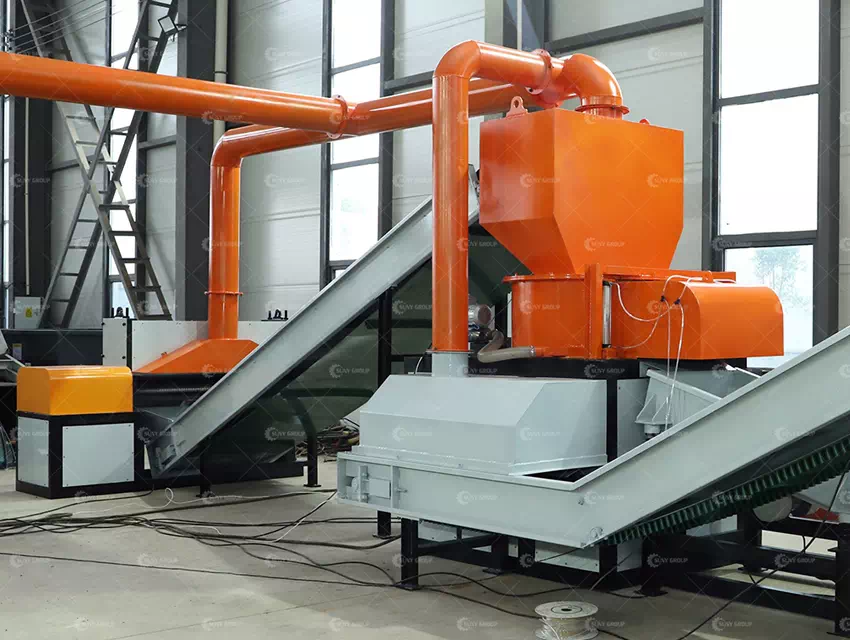

The Windshield Glass PVB Separating Machine consists of a double-roller compactor, a glass separator, and a pulse dust collection system. With a maximum feeding width of 1,500mm, it handles various windshield sizes. Controlled by an automated PLC with multi-language support, the operation is intuitive. The fully enclosed conveying design prevents dust leakage. Additionally, electrical components can be customized to meet standards (e.g., Schneider standards), ensuring high stability, production efficiency, and long-term operational safety.
| Model | Overall Dimension (M) | Power (KW) | Capacity (KG/H) |
| PVB-2000 | 15.7*2.4*4.5 | 32 | 1000-2000 |
| PVB-5000 | 18.0*9.0*4.5 | 104 | 4000-5000 |
Used for automotive windshields and architectural glass in Europe and America.
Mainly applied in glass lighting roofs, exterior windows, and curtain walls.
Commonly used for interior partitions and decorative glass.
Pre-pressing: The glass is fed into the double-roller compactor, which crushes the whole piece into small particles to physically break the adhesion between the glass and the interlayer.
Physical Separation: The crushed glass enters the separator, where mechanical force strips the glass particles from the interlayer surface without damaging the film.

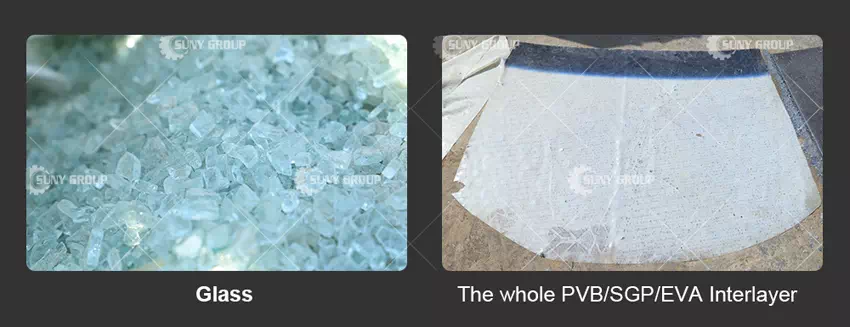

Collection: The system features dual outputs: pure glass particles and intact interlayers are collected separately, while the dust collector captures fine particles.
High Separation Rate: The glass removal rate reaches 99%, ensuring extremely clean interlayers and high-purity glass particles.
Interlayer Integrity: Unlike conventional shredders, this machine maintains the original shape and size of the interlayer, significantly increasing its recycling value.
Eco-friendly Operation: The fully enclosed conveying system effectively prevents dust leakage, meeting modern environmental and industrial standards.
High Customization: Core components like the PLC system and electrical parts can be customized (e.g., Schneider) to suit different international standards and languages.
Q: Will the separated interlayer be shredded?
A: No. This is our core advantage. The machine strips the glass while keeping the interlayer in its original shape and integrity.
Q: Does the equipment require highly skilled operators?
A: No. It uses automated PLC control with a multi-language interface. General workers can operate it after simple training.
Q: Will there still be residue on the glass particles?
A: After processing, 99% of the glass is removed. The output glass particles are highly pure and ready for remelting or other industrial uses.
