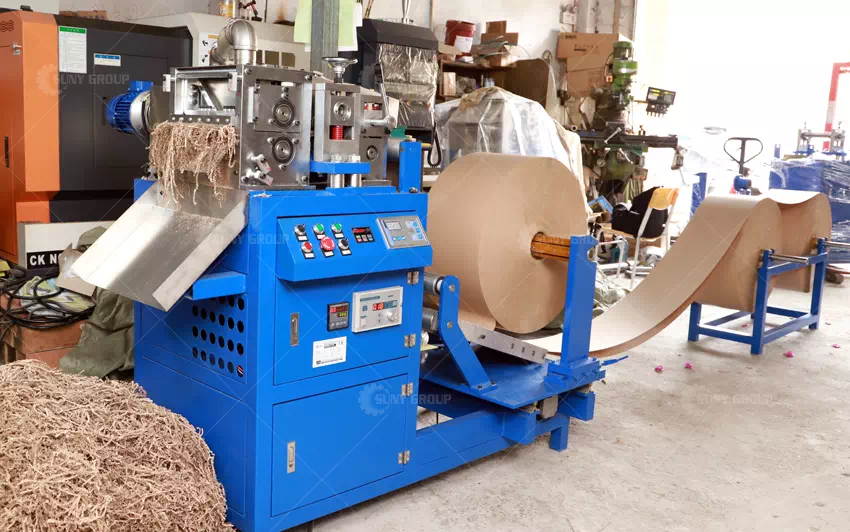

As the demand for sustainable and aesthetic gift packaging rises, this machine offers a professional solution for creating custom box fillers. With 20 years of expertise, it automates the production of high-quality crinkle and straight paper strips.
Suitable for various paper types with a thickness of up to 180g.

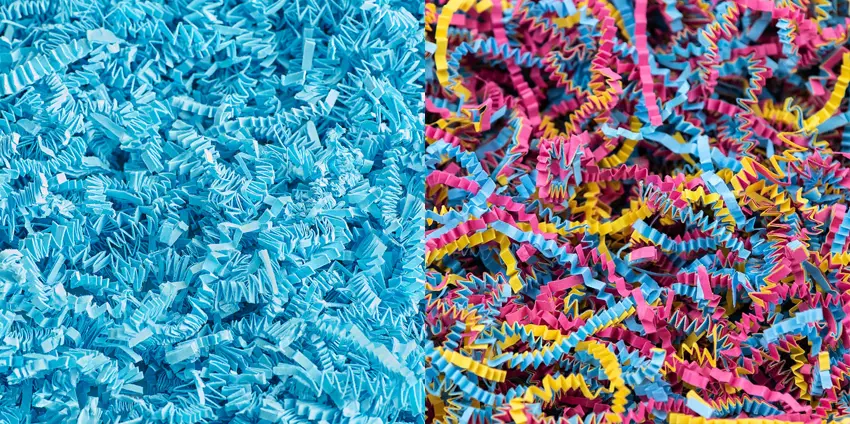

The machine produces two distinct effects: crinkle and straight shredded paper. It can process 1, 2, or 3 layers simultaneously, allowing the final output to feature single-color or multi-color combinations based on customer requirements.
Dual-Effect Versatility: A single machine capable of producing both crinkle and straight paper strips to suit different packaging styles.
Full Automation: The entire production process—from shredding width to cutting length—is fully adjustable and automated, ensuring high efficiency.
Simple Operation: Equipped with an intuitive English interface and button controls, allowing a single operator to manage the device easily.
Customizable Multi-Layering: Supports up to 3-layer feeding, enabling the creation of unique, multi-colored decorative fillers.
Proven Quality: Built with 20 years of manufacturing experience, ensuring superior equipment durability and consistent production output.
Parameter |
Specification |
|---|---|
| Model | ZY-RS800 |
| Paper Strip Width | 3mm |
| Feed inlet Size | 300mm |
| Motor Power | Main motor power: 3.8kw Total power: 6kw |
| Dimensions | Shredder: 1850x1150x1350mm Material Rack: 1000x450x500mm |
| Machine Weight | Net weight: 770kg Gross weight: 880kg |
| Accepted Paper Thickness | 50-180g |
| Cutting Speed | 0.6-0.7m/s (Adjustable) |
| Capacity | About 100-120kg/hour |
| Paper Width | 296mm |
| Support Paper Roll Diameter | 500-700mm |
