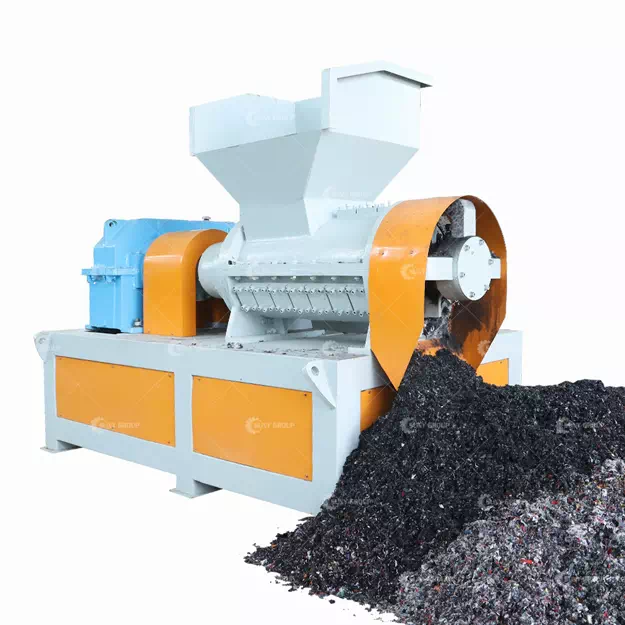

Spiral Shredder for Soft Materials

BACKGROUND AND PAIN POINTS ADDRESSED

Traditional shredders processing soft or fibrous materials commonly suffer from high noise levels, blade entanglement, inconsistent discharge, and frequent maintenance. This is particularly evident in sectors like plastic packaging, waste textiles, and agricultural films, where balancing production efficiency and equipment longevity proves challenging. The spiral shredder for soft materials was developed specifically to address these industry challenges. Its low-speed operation and specialized blade design reduce dust and noise while effectively preventing entanglement and ensuring stable discharge. This significantly enhances continuous processing capability and environmental friendliness.

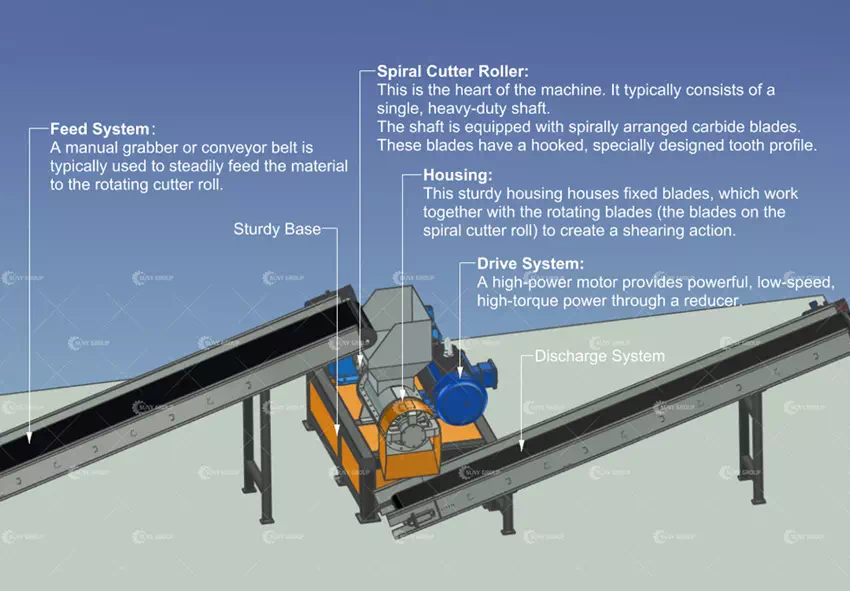

STRUCTURAL PRINCIPLES

The core consists of a low-speed, high-torque screw rotor combined with hook-shaped alloy blades. Feed material is progressively drawn, torn, sheared, and compressed by the spiral blades to achieve multidimensional shredding. A heavy-duty motor and reduction system deliver continuous, stable power, while the thick steel frame ensures long-term operation under high loads. Discharge size (10mm–50mm) is flexibly controlled by replacing screens or adjusting chamber length to meet diverse process requirements.

APPLICABLE MATERIALS

This machine processes diverse soft solid wastes: discarded garments, woven bags, plastic films, agricultural mulch, PP strapping bands, pet pads, and other rollable packaging materials. It delivers uniform, controllable discharge, serving as a pre-treatment stage for subsequent washing, pelletizing, compaction, or incineration—achieving volume reduction and efficient conveying.

MACHINE ADVANTAGES

Low Noise & Dust: Low-speed cutting significantly reduces dust and noise, making it suitable for workshops with stringent environmental requirements.

Robust Torque: A high-power motor paired with a heavy-duty gear reducer ensures continuous high-load operation.

Anti-Tangling Design: Spiral blades deliver a strong gripping force, effectively processing prone-to-tangle materials like fabrics and ropes.

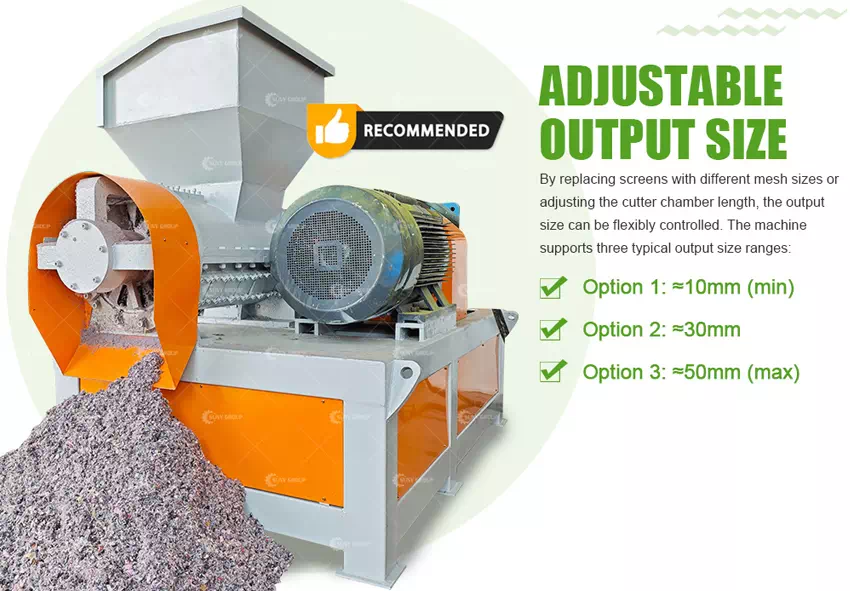

Adjustable Output: Screen replacement enables variable particle sizes, flexibly adapting to downstream processes.

Easy Maintenance & Long Service Life: Modular structure facilitates cleaning and replacement, reducing operational costs.

This spiral shredder balances stability, durability, and adaptability, providing an efficient and reliable solution for soft material recycling and reuse.
