Home Appliance Recycling Machine

BACKGROUND AND PAIN POINTS ADDRESSED

In an era of rapid electronic replacement, our Home Appliance Recycling Machine addresses the global e-waste challenge head-on. By promoting a circular economy, it recovers valuable metals and polymers from discarded units.

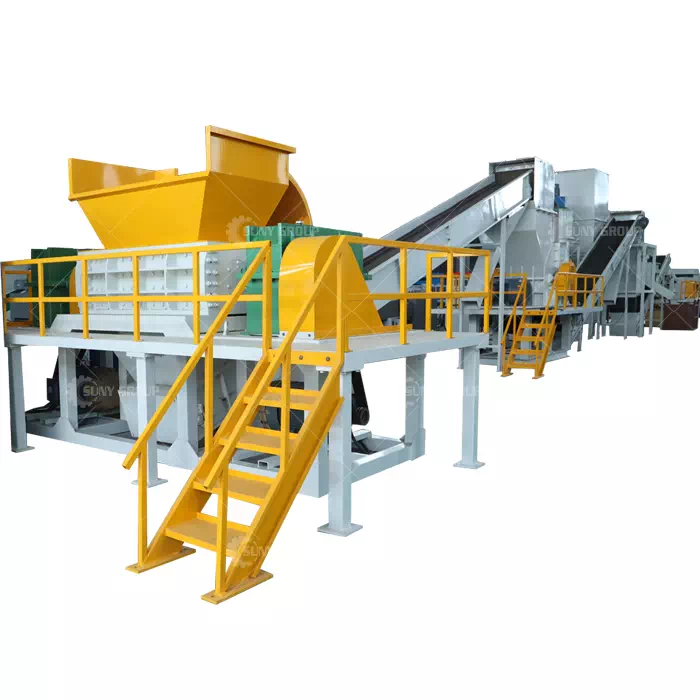

This sophisticated system is anchored by a heavy-duty four-shaft shredder, specifically engineered to process entire refrigerators etc and washing machines with ease. It is further refined by high-speed hammer crushers and a precision sorting suite—including magnetic and eddy current separators—ensuring the highest purity for recovered copper, aluminum, and steel.

APPLICABLE MATERIALS & OUTPUTS

Target Input: Large Appliances: Refrigerators, washing machines, and air conditioners.

Consumer Electronics: Televisions, monitors, and smaller household e-waste (WEEE).

High-Value Outputs:

Metals: Ferrous metals (Steel/Iron), Non-ferrous metals (High-purity Copper and Aluminum).

Non-Metals: Recyclable Plastics (ABS/PS) and compressed Foam (EPS) particles.

PROCESS FLOW

The home appliance recycling machine utilizes a fully automated, multi-stage physical separation logic:

Pre-processing Platform: Manual disassembly to safely remove hazardous components and large contaminants.

Primary Shredding: A high-torque Four-Shaft Shredder performs the first coarse cut, easily breaking down metal frames.

Refined Crushing: A secondary Hammer Crusher reduces the material into uniform granules, ensuring complete liberation of different material types.

Air Density Sorting: The Zig-zag Separator uses airflow to extract lightweight foam and dust from the heavier stream.

Magnetic Extraction: High-intensity magnetic separators automatically capture ferrous metal fragments.

Advanced Metal Sorting: An Eddy Current Separator identifies and ejects non-ferrous metals like copper and aluminum from the plastic residues.

Emission Control: Integrated dust collection and exhaust gas treatment systems maintain a clean working environment.

MACHINE ADVANTAGES

Cutting-Edge 4-Shaft Technology: The newly upgraded four-shaft shredder significantly boosts throughput while reducing the risk of material jams compared to traditional two-shaft models.

Exceptional Separation Purity: Through a combination of density, magnetic, and eddy current sorting, the machine achieves a recovery purity rate of up to 99% for metallic components.

Environmental Integrity: Equipped with a professional foam dust collection system and exhaust gas filtration, it effectively eliminates secondary pollution during the recycling process.

Intelligent Automation: The PLC-driven control system allows for real-time monitoring and minimal manual intervention, optimizing operational safety and cost-efficiency.

Industrial-Grade Durability: Constructed with high-strength, wear-resistant alloys, the machine is designed for continuous, heavy-load industrial performance.
